NAV02 – Ø1200mm Navigation Buoys

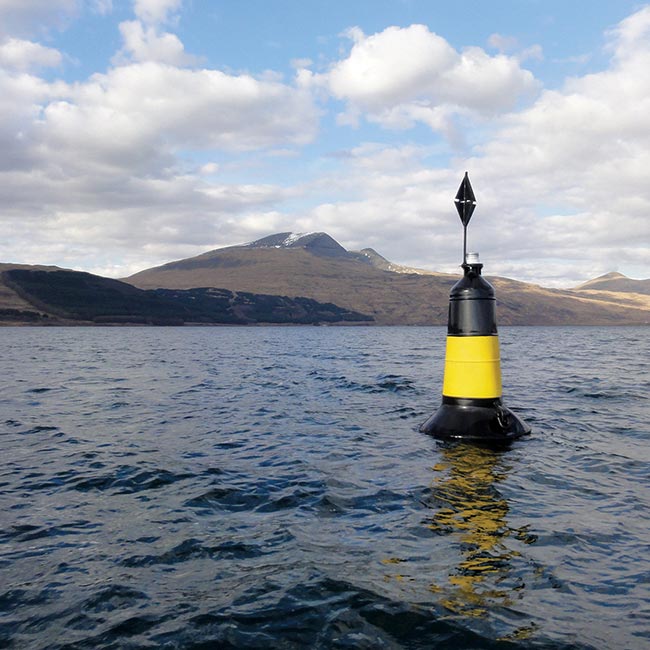

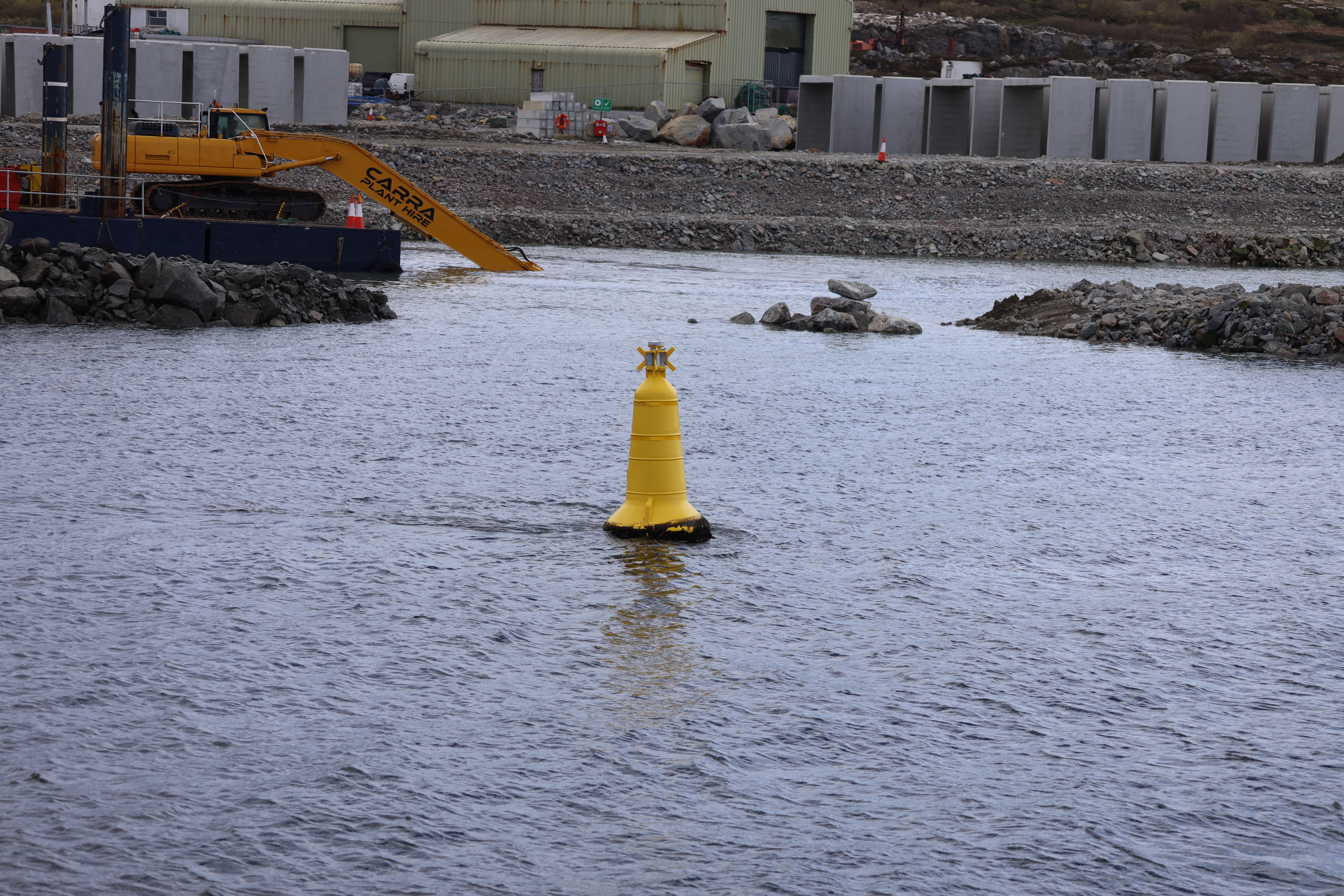

The NAV02 navigation buoy is ideal for marking temporary construction areas, racing marks, safe water channels, outfalls and aquaculture sites.
NAV02 Ø1200mm Navigation Buoys
Menu
Manufactured from strong durable polyethylene. Fully foam filled with internal ballast for stability. Fitted with two lifting eyes for ease of manoeuvrability for installation and servicing purposes.
The pillar design offers a high visibility solution with a Nominal Focal Height of 2 meters. Designed for use with self-contained lanterns with the options of topmark if required.
Features & Benefits
- Manufactured from marine grade (UV stabilised) virgin polyethylene
- High visibility pillar design
- All fixings are 316 grade stainless steel
- Fitted with lifting eyes of installation and maintenance
- Sits upright on deck of vessel for ease of storage on site
- Buoy can be fitted with a range of self-contained lanterns
- All JFC Marine Buoys are manufactured using 100% recyclable material
Certification
- Manufactured to ISO 9001 : 2015 quality assurance systems
- JFC Marine is a member of IALA (Association of Marine Aids to Navigation and lighthouse Authorities)
- JFC buoys and lanterns are manufactured in accordance with IALA guidelines
Specifications
Description: NAV02 Ø1200mm Navigation Buoy
Diameter: 1200mm
Nominal Focal Height: 2100mm
Overall Height: 2800mm
Nominal Draft: 470mm
Weight: 195kg
Lifting Eyes: 2
Mooring Eyes: 1
Colours: In accordance with IALA Maritime Buoyage System
Life Expectancy: Up to 20 Years
Lantern Options: M550, M650H, M660 or M880 series (or equivalent sized lanterns)
