The DB1250 is a compact 1250mm diameter data buoy platform designed for coastal and inshore monitoring applications. Its lightweight construction, stable full form, and central moon pool make it idea for projects requiring straightforward deployment and reliable sensor integration.
As part of the Gannet Buoy range, the DB1250 features a modular design and a robust central steel core, securely linking the lifting and mooring eyes for exceptional structural strength. The platform supports customer-installed instrumentation, power systems, and telemetry equipment, providing a flexible base for a wide range of environmental and oceanographic projects.
Features & Benefits
Specifications
✔ Durable Marine-Grade Construction
Manufactured from UV-stabilised, virgin polyethylene for long-term resistance to impact, abrasion, and harsh marine conditions.
✔ Daymark Options
Available with either a polyethylene or aluminium daymark tower, allowing operators to match strength, weight, or budget preferences.

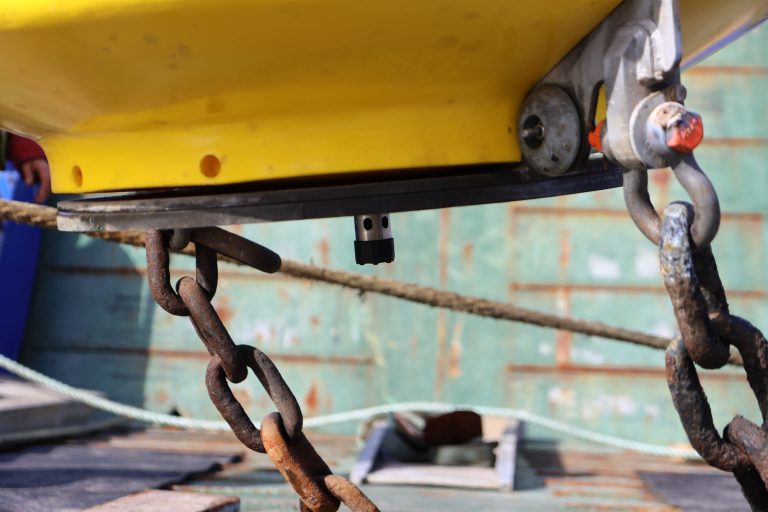

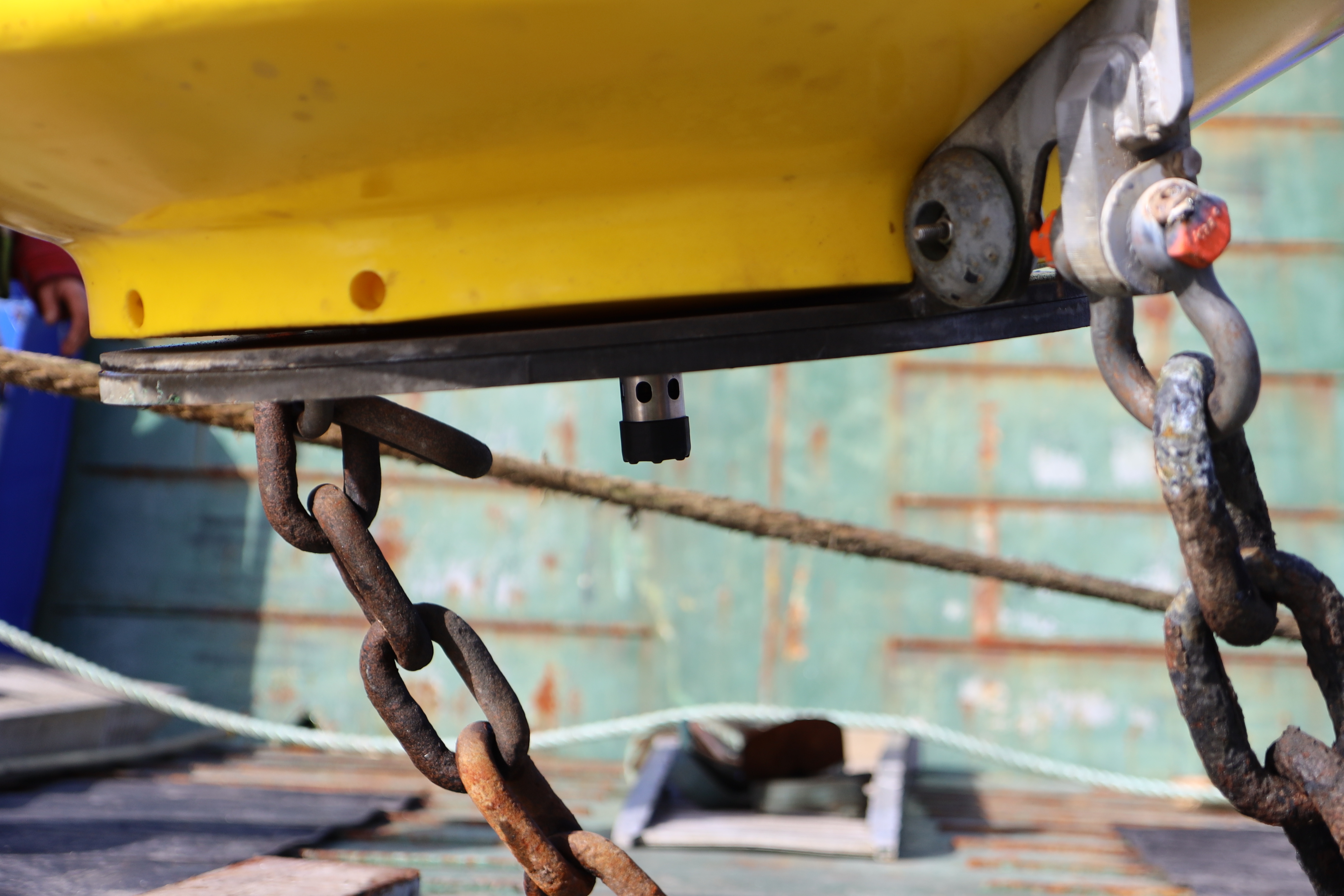

✔ Central Moon Pool (Ø180mm)
A built-in moon pool enables efficient deployment of downward-facing sensors such as ADCPs, water quality sondes, or hydrographic instruments.
✔ Ready for Solar Panel Mounting
The daymark tower includes surfaces suitable for customer-installed solar panels to support battery packs and power regulation hardware.
✔ Compact and Easy to Handle
Its small footprint and low weight make the DB1250 well-suited to vessel-based deployment and recovery in coastal and sheltered environments.
✔ Sustainable and Recyclable
All JFC Marine buoys are manufactured using 100% recyclable materials as part of our commitment to responsible production.
✔ Optional Foam Filling
Enhanced buoyancy and impact resistance available through additional foam filling within the hull.
Description: Ø1250mm Gannet Data Buoy Platform |
Diameter: 1250mm |
Nominal Focal Height: 1300mm |
Overall Height: 2400mm |
Nominal Draft: 580mm |
Weight: 360kg |
Lifting Eyes: 2 |
Mooring Eyes: 2 |
Colours: In accordance with the IALA Maritime Buoyage System |
Life Expectancy: Up to 20 years |
Lantern Options: M550, M650H, M660 or M880 series |
Certifications & Compliance
✅ ISO 9001:2015 and ISO 14001 Certified
Manufactured under an accredited quality management system.
✅ IALA Membership
JFC Marine is an active member of the International Association of Marine Aids to Navigation and Lighthouse Authorities.
✅ IALA-Compliant Manufacturing
Platforms can be supplied with IALA-compliant colours, top marks, and lantern compatibility to suit project requirements.
