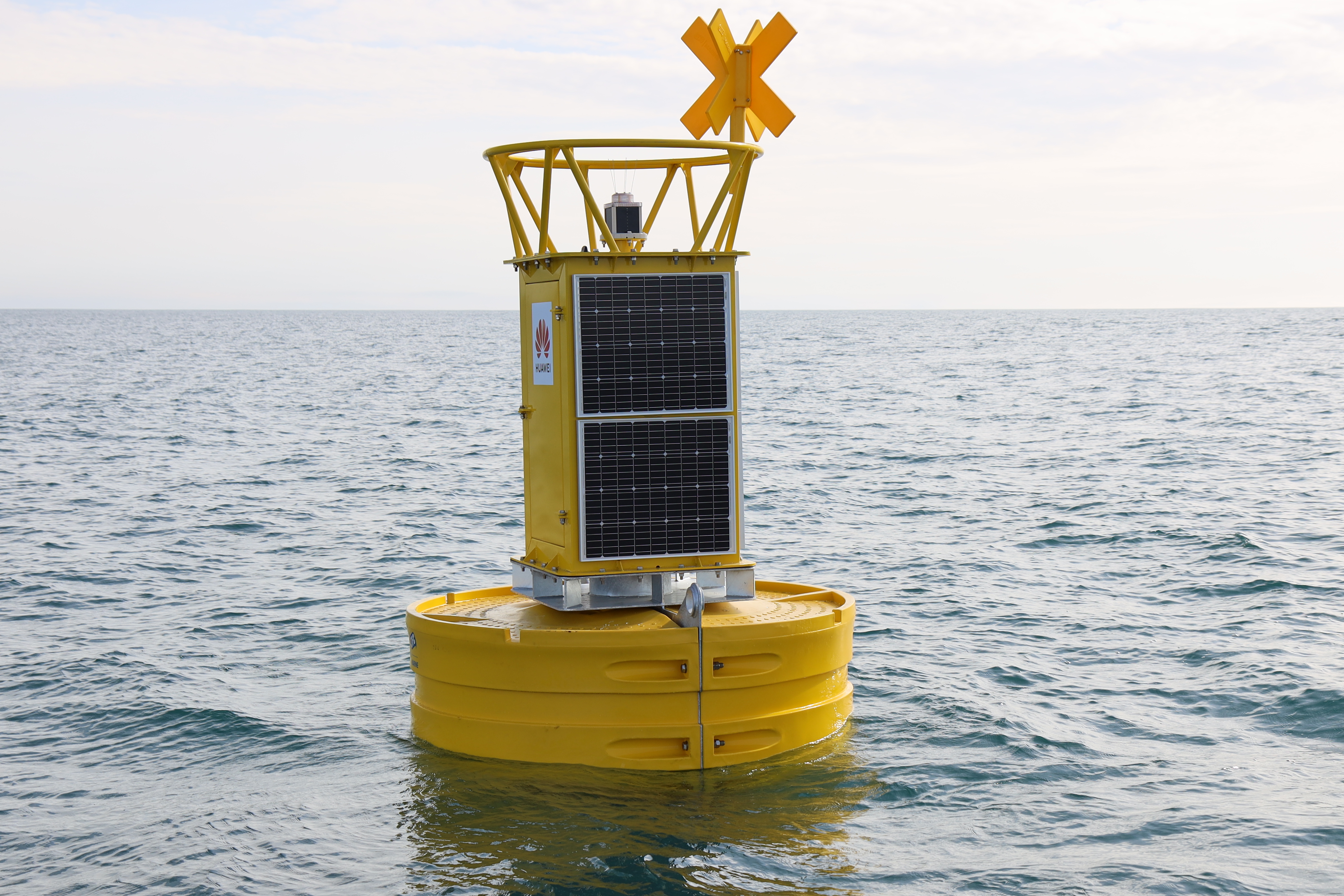

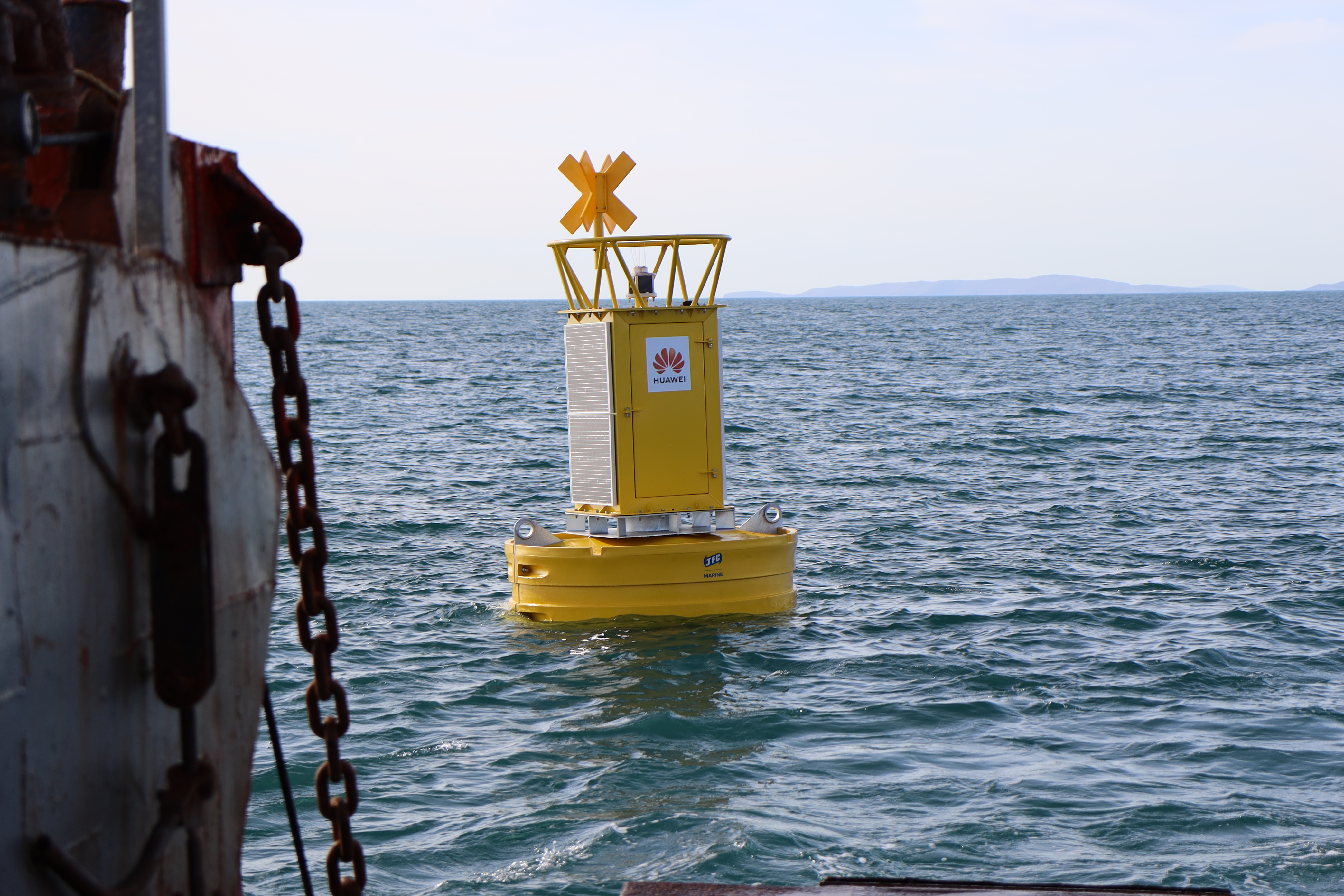

The DB2200 is a robust 2200mm diameter data buoy platform engineered for demanding offshore and long-duration monitoring programmes. With its large hull volume, excellent stability, and expanded moon pool, the DB2200 supports heavier payloads, multiple sensors, and higher-power installations where reliability and endurance are essential.

Build within the proven Gannet buoy family, the platform features a modular design and a reinforced central steel core that securely connects the lifting and mooring eyes, giving exceptional strength and consistent performance in exposed marine environments.

Features & Benefits

Specifications

✔ Heavy-Duty Marine Construction

Manufactured from UV-stabilised, virgin polyethylene, the DB2200 is designed to withstand long-term offshore exposure, impact forces, and challenging marine conditions.

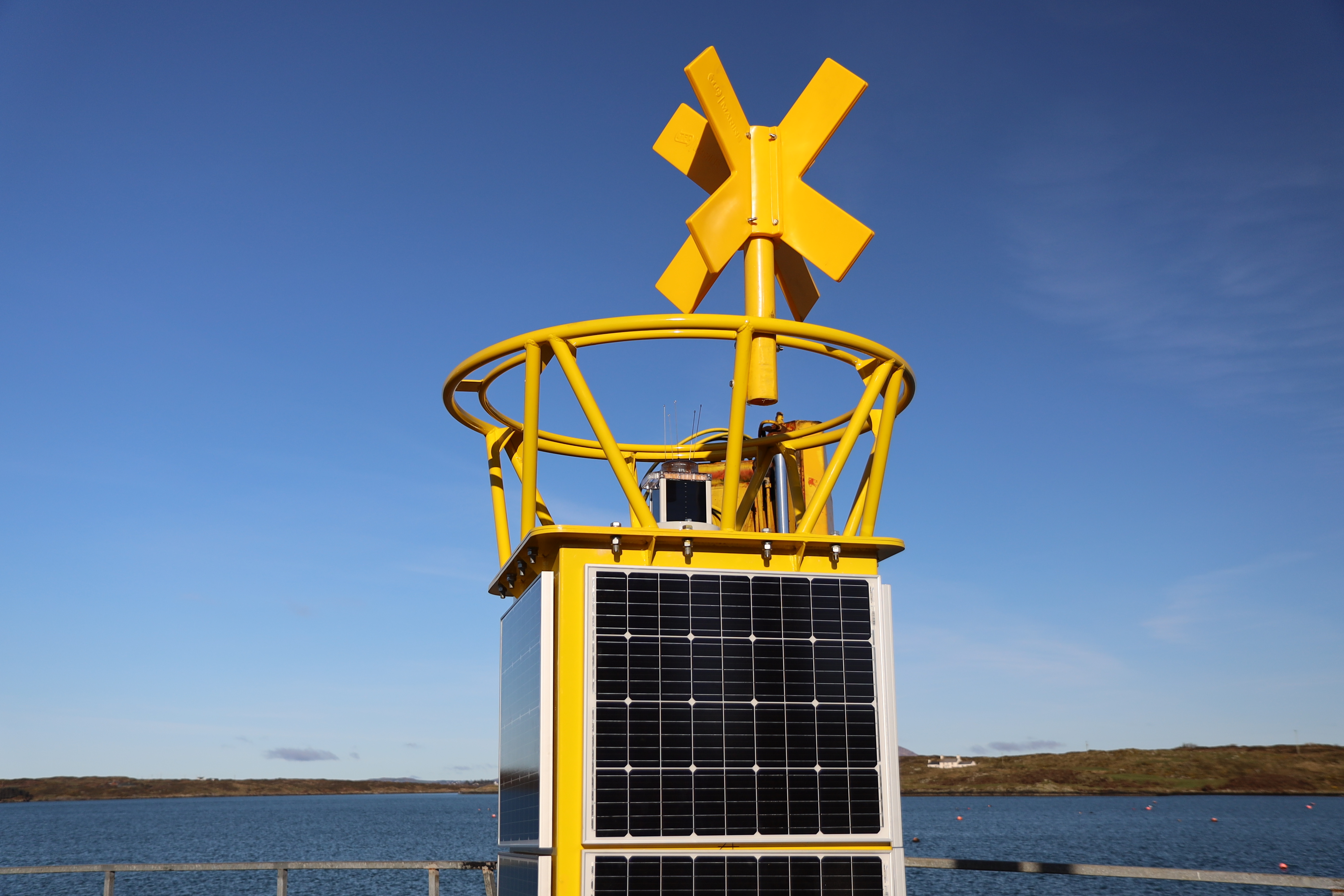

✔ Three Daymark Options

Available with one polyethylene or two aluminium daymark configurations, providing flexibility for different environmental loads, visibility requirements, and project specifications.

✔ Large Central Moon Pool (Ø390mm)

A winder moon pool accommodates larger or more complex sensor packages, including ADCPs, hydroacoustic systems, multiparameter probes, and specialised instrumentation.

✔ Ready for Solar Panel Mounting

The daymark tower supports customer-installed solar panels suitable for powering external batteries, telemetry units, and high-demand monitoring equipment.

✔ High Stability and Payload Capacity

With its substantial buoyancy and increased draft, the DB2200 is ideal for deployments involving heavier electronics, multi-sensor arrays, or elevated power requirements.

✔ Sustainable Materials

All JFC Marine Buoys are produced using 100% recyclable materials.

✔ Optional Foam Filling

Foam-filled variants provide additional impact resistance, buoyancy retention, and structural security in harsh offshore environments.

Description: Ø2200mm Gannet Data Buoy Platform

Diameter: 2200mm

Nominal Focal Height: 2850mm

Overall Height: 5400mm

Nominal Draft: 1300mm

Weight: 2000kg

Lifting Eyes: 2

Mooring Eyes: 2

Colours: In accordance with the IALA Maritime Buoyage System

Life Expectancy: Up to 20 years

Lantern Compatibility: Compatible with a wide range of IALA marine lanterns as required

Request Technical Specifications

Certification

Applications

✅ ISO 9001:2015 ISO 14001 Certified

Manufactured under an accredited quality management system.

✅ IALA Membership

JFC Marine is an active member of the International Association of Marine Aids to Navigation and Lighthouse Authorities.

✅ IALA-Compliant Manufacturing

Platforms can be supplied with IALA-compliant colours, top marks, and lantern compatibility to suit project requirements.

The DB2200 is ideally suited for:

  1. Offshore metocean studies
  2. Long-term environmental monitoring
  3. Multi-instrument deployments
  4. High-power telemetry systems
  5. Research and industry monitoring stations

Its combination of size, stability, and payload capability makes it a preferred choice for demanding open-water installations.
