Ø1800mm Gannet Navigation Buoy

The G1800 Navigation buoy has a large visual daymark with a Nominal Focal Height of 2.5m. The Gannet buoy range is a modular design with a unique central core steel arrangement connecting the lifting eyes to the mooring eyes for superior strength and durability.

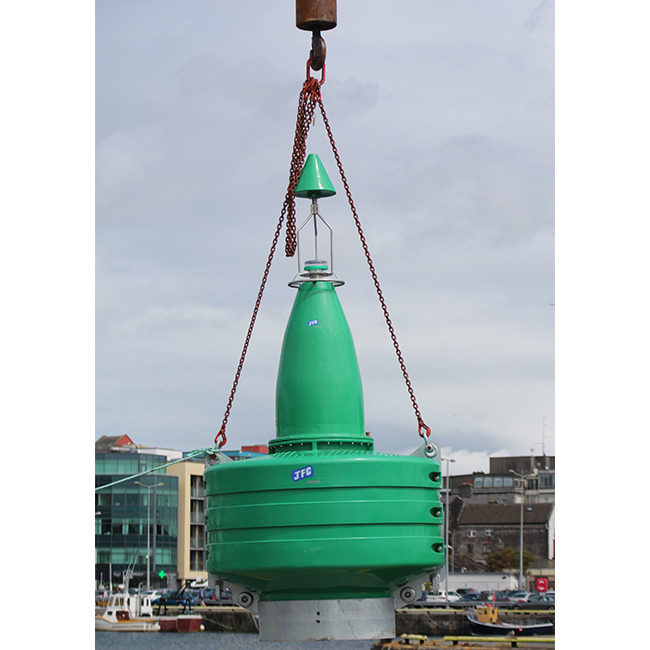

Green FC Marine G1800 Gannet Navigation Buoy in use

Ø1800mm Gannet Navigation Buoys

The Gannet buoy range is a modular design with a unique central core steel arrangement connecting the lifting eyes to the mooring eyes for superior strength and durability. The buoy is manufactured using marine grade (UV Stabilised) polyethylene material.

The central core design includes two mooring eyes fitted with a unique replaceable bushing system, extending the operational life of the buoy. The use of a twin bridal mooring provides greater stability and mooring flexibility when used in locations with fast water currents. The centre core is fitted with two lifting eyes for ease of manoeuvrability during installation or servicing.

Available in all the IALA recommended colours and configurations with optional daymark cone or can shape.

Features & Benefits

  • Manufactured from marine grade (UV stabilised) virgin polyethylene
  • Solid ballast plate adding extra protection to the underside of the buoy hull
  • Reduced hydrodynamic drag and the watch circle (swing radius)
  • 316 Grade stainless steel top mark hand rail
  • Fitted with two large lifting eyes for ease of installation and during maintenance
  • Mooring eyes (bridal system) for increased stability in harsh marine environments
  • Mooring eyes fitted with replaceable sacrificial wear bushings
  • Stands upright on the deck of vessel for ease of storage on site
  • Modular design making it easier to replace damaged parts if necessary
  • Slip resistant surface on hull deck
  • Replaceable sacrificial anodes for corrosion protection
  • Open central core for data applications available
  • All JFC Marine Buoys are manufactured using 100% recyclable material

Certification

  • Manufactured to ISO 9001 : 2015 quality assurance systems.
  • Full Certification to EN 1090 CE Marking of Steel
  • JFC Marine is a member of IALA (Association of Marine Aids to Navigation and lighthouse Authorities)
  • JFC buoys and lanterns are manufactured in accordance with IALA guidelines

Specifications

Description: Ø1800mm Gannet Navigation Buoy
Diameter: 1800mm
Nominal Focal Height: 2500mm
Overall Height: 3750mm
Nominal Draft: 650mm
Weight: 620kg
Lifting Eyes: 2
Mooring Eyes: 2
Colours: In accordance with IALA Maritime Buoyage System
Life Expectancy: Up to 20 Years
Lantern Options: As per requirements

Options for Day Marks available for Gannet Ø1800

Options for Hulls available for Gannet Ø1800
