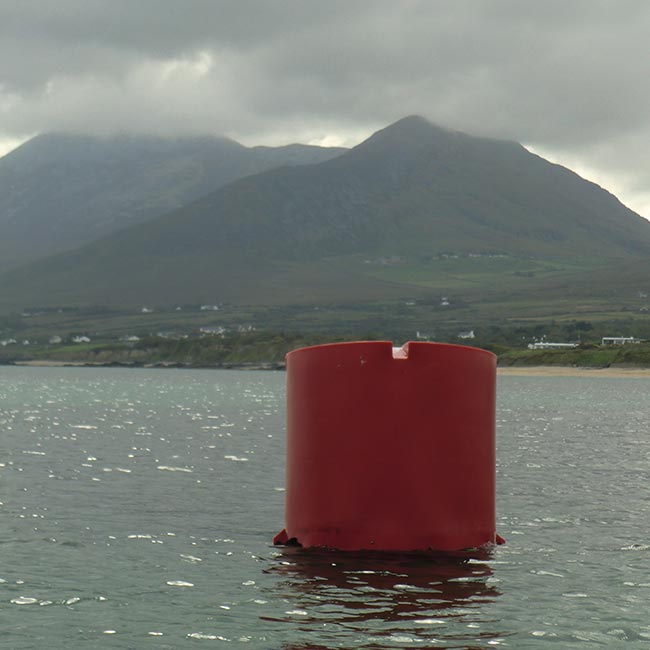

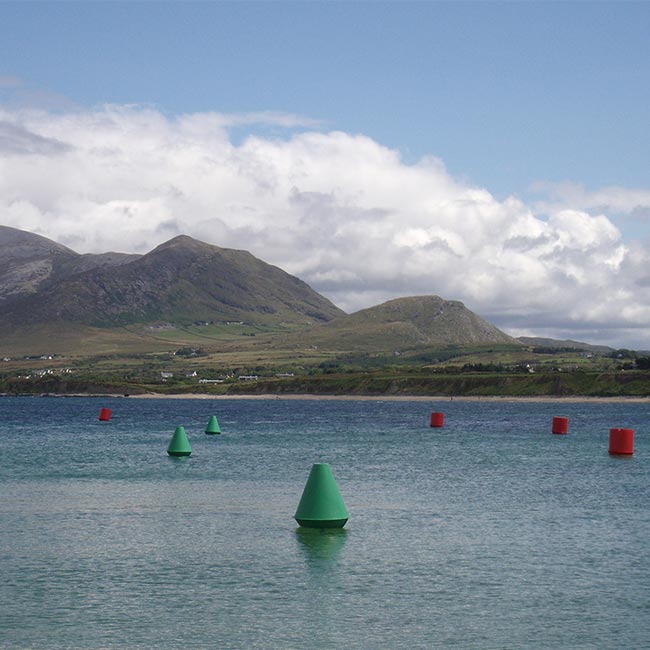

NAV03 – Ø900mm Cone/Can Navigation Buoys

Small and lightweight Cone and Can shape navigation buoys provide a highly visible solution with a Nominal Focal Height of 900mm.

Yellow JFC Marine Nav03 navigational buoys

NAV03 Ø900mm Navigation Buoys

Menu

Manufactured from strong durable polyethylene. Fully foam filled with internal ballast for stability. Fitted with two lifting eyes for ease of manoeuvrability during installation and servicing. Designed for use with self-contained lanterns with the option of a top mark if required. Ideal for marking temporary construction areas, racing marks, safe water channels, outfalls and aquaculture sites.

Features & Benefits

  • Manufactured from marine grade (UV stabilised) virgin polyethylene
  • Small and light weight, easy to handle
  • High visibility
  • Excellent buoyancy and stability
  • Fitted with two lifting eyes for ease of installation and maintenance
  • All fittings are 316 grade stainless steel
  • Stands upright on deck or vessel for ease of storage on site
  • Buoy can be fitted with a range of self-contained lantern
  • All JFC Marine Buoys are manufactured using 100% recyclable material

Certification

  • Manufactured to ISO 9001 : 2015 quality assurance systems
  • JFC Marine is a member of IALA (Association of Marine Aids to Navigation and lighthouse Authorities)
  • JFC buoys and lanterns are manufactured in accordance with IALA guidelines

Specifications

Description: NAV03 Ø900mm Cone/Can Navigation Buoy
Diameter: 9000mm
Nominal Focal Height: 1000mm
Overall Height: 1200mm
Nominal Draft: 370mm
Weight: 85kg
Lifting Eyes: 2
Mooring Eyes: 1
Colours: In accordance with IALA Maritime Buoyage System
Life Expectancy: Up to 20 Years
Lantern Options: M550, M650H, M660 or M880 series (or equivalent sized lanterns)
