Leading / Range Lanterns

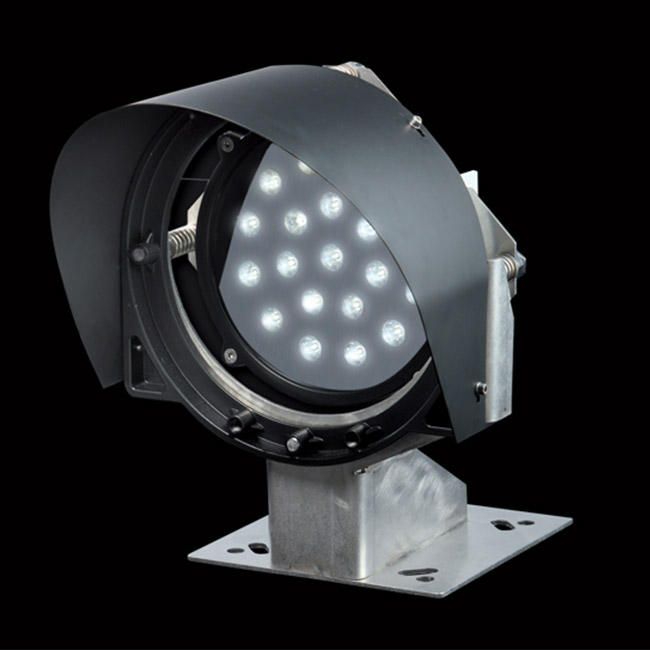

LO 200H Range Lantern

Range Light LO 200H signal is designed to be used as long-range directional light, as port entry signal or as lock traffic signal requiring long range and high visibility. Due to the high luminous output, this light can also be used in applications requiring daytime visibility.

JFC Marine Leading Range Lantern LO200H

LO 200H Range Lantern

Menu

High Intensity LED Range Light Signal.

The lantern housing builds up as a solid single piece heat sink for the high power LED’s hence offering the best possible thermal management to ensure long lifetime.

Features & Benefits

  • High intensity precision range light equipped with high power LEDs
  • Intermediate horizontal and vertical beam of 8° (FWHM)
  • Integrated sun shield to protect lens from dirt and improve contrast
  • Integrated 3-axis alignment of beam for easy installation
  • Visual range up to 18 NM (Tc = 0.74)
  • The range light has an integrated LED driver, but no flasher or photocell
  • For additional functionality, the Sabik LHC unit can be connected to the lantern

Specifications

Range
18 Nautical Miles

Dimensions
226mm (L) 394mm (H)

Weight
10kg

Colours
