Leading / Range Lanterns

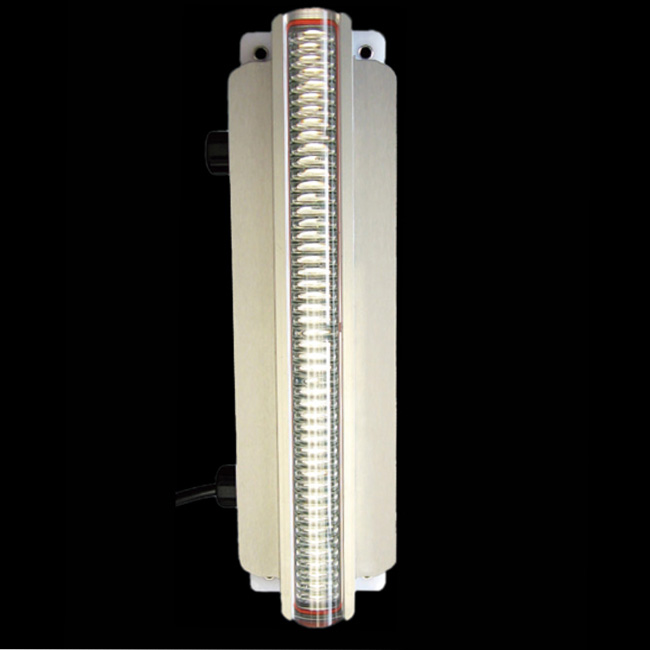

VLL-43 Range Lantern

With a range of up to 0.75 NM by day and 11 NM by night at 0.74T, this is a powerful and versatile uni-directional lantern ideal for marking short ranges or obstacles.

FC Marine_VLL43

VLL-43 Range Lantern

Fully sealed and very robust, with a plastic enclosure and aluminium heat sink, they are rated for 100% duty cycle. No maintenance is required. Each unit is 300 mm (12″) tall. They can be stacked end-to-end to give an extended line source and can be easily mounted against a vertical pole.

Features & Benefits

  • Separate intensity settings for day and night
  • Nine night/day transition settings
  • Up to 246 standard flash characters
  • One programmable custom character
  • Up to 20 factory set customer characters
  • Wired synchronisation with options of master/slave
  • Synch delay from 0.1 to 9.9 seconds
  • Battery low voltage cut off
  • Optional PIN code for programming
  • Programming uses the Vega IR programmer

Specifications

Range
Up to 11 Nautical Miles


Dimensions
302mm (L) 100mm (W) 65mm (H)


Weight
1.3kg


Colours
